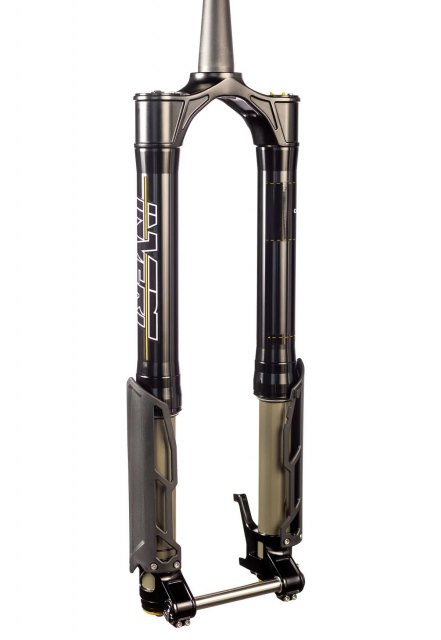

Cane Creek Invert Enduro

Click on image to enlarge

Product Description

Why Inverted

The magic of Inverted forks is described in two words – Smoothness and Traction.

By placing the larger, stiffer tubes up top and the bushings closer to the axle, inverted forks better resist the fore/aft flex that causes binding friction and chatter. The inverted design also offers significantly more front wheel traction by allowing the tire to swim - not skip - through rough, loose, and off-camber sections.

Together, this produces the magically smooth, calm, and planted front end that inverted forks are known for. Moto figured it out first, and now mountain bikes have unlocked it.

SquareLoc Axle System

Two Axle Options

With inverted forks, the majority of the feel and performance comes from the axle. Invert Enduro’s SquareLoc axle keys to the dropouts, then locks in place with 4 pinch bolts to secure the entire fork together. This keeps the legs from twisting around the axle and adds all the needed torsional stiffness to the fork. With SquareLoc, you can tune the exact flex characteristic of the fork to suit your preferences.

15mm Axle

17-4 Pre-Hardened Stainless Steel
Included with Invert Enduro
Suitable for most riders
17% more torsional stiffness than other inverted single crown forks
Compatible with your current front wheel – the plug & play solution
Gives max traction by allowing front tire to stay planted instead of skipping/deflecting

20mm Axle

17-4 Pre-Hardened Stainless Steel
Available Separately (£89.99)
Offers maximum torsional stiffness, steering precision, and most direct front end feel
42% more torsional stiffness than other inverted single crown forks
Optimal performance for heavier riders or those on full power e-bikes

E-Bike Ready

While it suits bikes just fine, we made sure that the Invert Enduro chassis was built to handle the weight, power, and speed of modern e-MTBs. 45mm diameter upper tubes paired with 38mm lower tubes and our SquareLoc axle system make the Invert one of the most robust single crown enduro forks available. We wanted a fork that would allow us to fully utilize our e-bikes' abilities to do more laps on the most challenging downhills. We hope you brought your range extender…

SideSwipe Guards

Protection Where It’s Needed

Dirt bikes and motorcycles use fork guards that face forwards to protect the stanchion tubes from debris being kicked up at high speed by the riders ahead. Mountain bikes simply don’t have this problem and therefore don’t need their fork guards placed in the same orientation. Invert Enduro’s SideSwipe guards are shifted to the side of the fork, where mtb forks actually take abuse. This results in a better-looking layout that’s more specific to the mountain bike application.

Product Specifications

Travel: 160mm, 170mm, or180mm (Requires different air spring for travel change)
Actual Weight: 2795g (180mm travel - complete with guards, hardware, and full steerer)
Axle: Compatible with 15mm or 20mm front axle using included adapter. 20mm axle available separately.
Axle Material: 17-4 pre-hardened stainless steel
Guards: SideSwipe Guards included
Adjustments: HSC, LSC, LSR, Air Pressure & Volume
Spring Type: Air spring only. Cartridge style with self-equalizing charge port design for lowest initial force.
Upper Tube Diameter: 45mm
Stanchion Tube Diameter: 38mm
Axle Keys: SquareLoc axle keys to dropouts and secured with pinch bolts for high level of torsional stiffness.
Bleed Screws: In top caps for maintaining plushness
Setup and Tuning: Easy setup using suggested sag marks on guard. ForkTuner app for dialed air spring and damper tuning.
Overbuilt Steerer Tube:1 1/8" - 1 1/2". Extra wall thickness increases strength and stiffness.
Axle-to-Crown:586.5mm (170mm travel)
Brake Rotor:200mm native (220mm with adapter)

View other products in Cane Creek »

Features
Delivery
Returns

Product Features

Features: E-MTB, Enduro
Model: Invert Enduro
Stanchion diameter: 38mm
Travel: 160mm, 170mm, 180mm
Wheel Size: 29"

Delivery

For spare parts, if they are in stock we will send them out the same day if we receive the order before midday (except weekends). If we receive the order after midday, we will do our best to despatch them same day, but it may be the following working day. Orders placed after 3pm on Friday will be despatched on the following Monday. We normally send spare parts by Royal Mail post (see below or our 'Shipping' page for cost/delivery times).

Forks, shocks and large/heavy orders go by courier. UK deliveries are with DPD Local, for overseas customers it's DPD, FedEx or DHL. In all cases these are fully tracked services and you'll need to sign for the delivery - please provide a suitable address with extra instructions if necessary.

Returns

You may return your order unused, within 14 days for a refund if you no longer require it, provided it is returned with its original undamaged packaging and is unused and unmarked. Please note, we do not refund postage unless items were supplied in error or are faulty.

Picking mistakes do sometime happen. If we supply the wrong part or there are parts missing from your order please let us know within 14 days of receipt so that we can correct the mistake. In the case of picking errors we will refund your postage costs on the returned item.

Faulty goods will be replaced with the same item or a suitable equivalent, as appropriate.

TF Tuned cannot be held responsible for the non-receipt of returned goods so please ensure you use a tracked and/or insured service as appropriate to the value of the goods you are returning.

Invert Enduro unlocks dirt bike-level confidence on your mountain bike. It brings the traction and smoothness of moto-style inverted forks to more riders with less cost and hassle. It’s the kind of game-changing component that will have you unlocking the trails and features you’ve dreamed of checking off.
