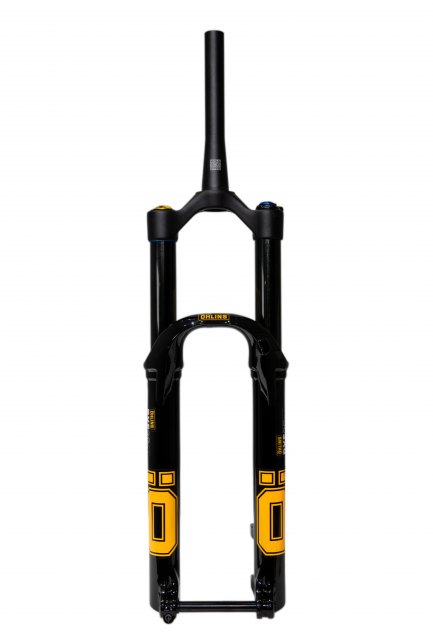

Ohlins RXF38 m.3 Air / Coil TTX18, 29"

Click on image to enlarge

Product Description

The new RXF38 m.3 features reworked internals and updated settings, built around the race-proven TTX18 cartridge. This stiff fork is the perfect match for e-MTBs, aggressive trail riding and enduro racing, delivering significant performance upgrades on every ride.

The new RXF38 m.3 fork delivers hard-hitting, dual-crown downhill performance in a single-crown design, with improvements in comfort, sensitivity, and bottom-out control. Bottom-out progressiveness has been increased with the addition of a spring booster, and the system is further optimized for use with volume spacers, giving riders greater flexibility to fine-tune their ride feel. The RXF38 m.3’s adjustment range provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment. It features our floating axle design to minimize friction and weighs 2,320 g (with bolts and axle). The RXF38 m.3 is available for 29” wheel sized frames, with four iterations offering 160-180 mm of travel and a 44 mm crown offset.

A new surface treatment on the stanchions improves small-bump sensitivity and overall ride smoothness in the new RXF38 m.3. It also reduces wear and enhances long-term performance. The updated lowers feature a gloss black finish and bold new graphics, ensuring riders can both feel and see the next level of performance every time they hit the trail or park. The cartridge-based air spring also allows for quick swaps between air and coil setups when needed. With these upgrades, the new RXF38 m.3 fork is the most advanced trail fork we’ve ever created and your top choice when the trails get steeper, the rock gardens rougher, and the gaps bigger.

Technical Specifications:

TTX18 damping system
Independent cartridge air spring and damper systems
160-180 mm travel at 29" wheelsize
Designed for 200 mm rotor size (max. 230 mm)
Easy to tune three-chamber air spring system (positive-, negative- and ramp up chamber)
Updated air spring with spring booster & spacer compatibility
38 mm stanchions & new chassis with reduced friction
44 mm crown offset
Floating axle design for minimal friction
Approved for eMTB use
Compatible with maximum tire sizes up to 29x2,6
Weight from 2320 grams
Rebuildable
2 year warranty
