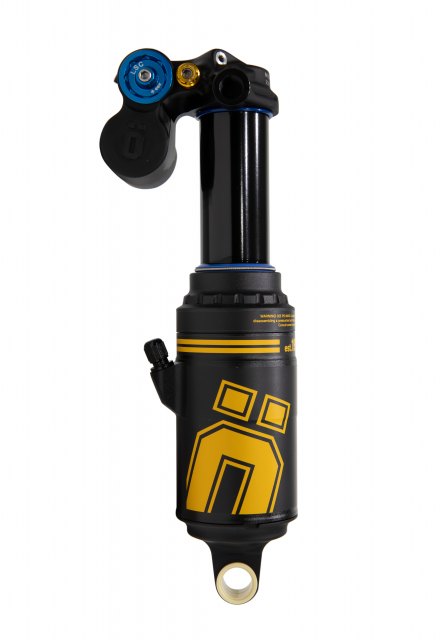

Ohlins TTX2Air m.2 - Trunnion

Click on image to enlarge

Product Description

The TTX2 Air boasts our twin-tube damping technology in a double-can, higher volume, air spring shock designed for more progressive suspension systems. With reduced friction and enhanced sensitivity and comfort, combined with ultimate traction and control, the shock now deliver an even more refined coil-like feel. This elevated ride quality is made possible by new seals and the introduction of a bladder system, resulting in better rear-wheel control and improved ground contact. The updated damper allows the rear wheel to track terrain more precisely through rough sections, ensuring superior traction and handling.

The TTX2Air m.2 features an improved pedal platform that provides better support when pushing hard and efficiently through challenging climbs. For added convenience, the updated shock is compatible with remote systems controlled directly from the handlebar. The system works with any remote that pulls 7.5 mm of cable per click. A redesigned spacer system makes it easier than ever to adjust the air volume in the positive chamber. Stroke adjustment has also been simplified, and there is no longer any need to remove the end-eye for modification. The result is a highly sensitive, easy-to-dial-in shock that delivers a perfectly tuned suspension setup.

Externally, the TTX2Air m.2 includes a redesigned adjustment knob for quicker, more intuitive tuning, allowing riders to fine-tune their setup on the fly. The updated shock also come with refreshed graphics for a clean, modern look.

The TTX2Air m.2 version builds on our race-proven, robust air-sprung shock and is best suited for bikes with more progressive linkage ratios. It has larger positive and negative air chamber volumes, a double-can, air spring design with additional control of the air volume spacing. This gives riders greater freedom to adjust the spring curve and easily dial-in the exact amount of progression they desire. With upgrades across key areas, TTX2Air m.2 delivers more precise fine-tuning, unmatched comfort and sensitivity, and stands as the most well-balanced, predictable damper we’ve created to date. Riders now have a broader range of tuning options to perfectly match their bike and riding style - whether pushing limits between the tape or just riding for fun.

Features:

Twin-tube technology (TTX)
Double-can design with larger volume in both air chambers
Race-proven setting bank, to suit any type of riding or linkage design
Air spring volume spacers included as standard in the shock kit
Easy stoke tune without tools
Available in trunnion metric lengths
Redesigned adjustment knob
Compatible with different remote systems
Redesigned spacer system for easier adjustments
Maximum air pressure up to 325 psi

Adjustment:

Air pressure
Air volume (via spacer system)
Stroke (via spacer system)
3 click high-speed compression damping incl. Climb-Mode
12 click low-speed compression damping
3 click low-speed rebound damping

View other products in Ohlins TTX Air »

Features
Delivery
Returns

Product Features

Model: TTX Air
Shock Size: 185x50, 185x52.5, 185x55, 205x57.5, 205x60, 205x62.5, 205x65
